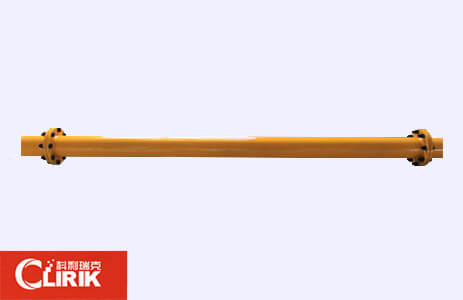

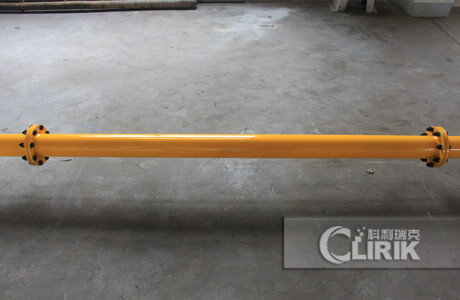

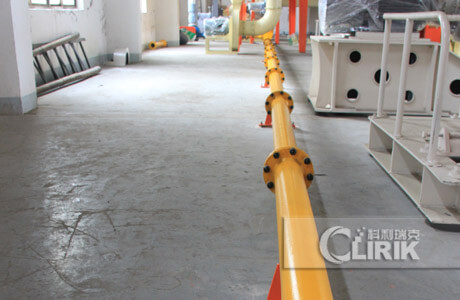

Air Conveying System
Processing ability: 0.1-50t/h
Fineness: ≥60 mesh
Max feeding size: 1-65m³/min
Range of application: Gas ,Powder
- +8613917147829
- sales@clirik.com
Focus on the field of micro powder grinding !
Processing ability: 0.1-50t/h
Fineness: ≥60 mesh
Max feeding size: 1-65m³/min
Range of application: Gas ,Powder
Table of Contents
Air conveying system, which takes Roots blower as the air source, is designed specifical for close distance and continuous transporting. Transporting distances is generally horizontal distance≤ 300m, vertical distance 30m. It is suit for conveying powder specific gravity ≤1.3, fineness≥60 mesh, moisture content≤5%, under the highest instantaneous temperature≤250℃working conditions, the maximum throughput is 60 t/h. It also can be used in the nesting conditions for single-point or multi-point requirements. The equipment is with long life, low operation and maintenance costs, small size, easy controlling, widely used in mining, building materials, coal, chemical and other industries.
Air Conveying System uses the principle of gas-solid flow fluidization, jet technology, combined with differential pressure principle, to finish this working progress. Taking the electric rotary feeder as the feeding device, the material evenly is put into the mixing chamber. At the same time, the Roots blower jet the high-speed air flow of materials into the acceleration chamber, the suspended flow into the conveying pipeline transport to in silos, according the separated by the feed gas, powder fall under silo gases into atmosphere, in order to achieve a powder material handling purposes.
Air Conveying System Advantage
1. Variable arrangement of the pipe makes the production craft process more reasonable.
2. The system is sealed and lead to few flying dust, it benefit for environment protection.
3. Few movement parts, convenient maintenance, automatic control can be realized easily.
4. High efficiency of transportation reduce the cost of packing, loading and unloading.
5. Make the material avoid being damped, polluted, damaged, and mixed with other material, the quality of conveying is assured.
6. Various operation processes can be realized meanwhile for the conveying, such as mixture, crush, grade, dryness cooling, and dust collection.
7. Send the material from couple place to one place and from one place to couple place, realize far distance operation.
8. For the material with erratic chemical character, can adopt inertia gas conveying.
|
Model |
ST-LXB-0.5 |
ST-LXB-2 |
ST-LXB-5 |
ST-LXB-10 |
ST-LXB-15 |
ST-LXB-20 |
ST-LXB-30 |
ST-LXB-40 |
ST-LXB-50 |
||
|
Capacity(t/h) |
0.1～0.5 |
0.5～2 |
2～5 |
5～10 |
10～15 |
15～20 |
20～30 |
30～40 |
40～50 |
||
|
blast capacity (m³/min) |
1.0～3.0 |
8.0～12 |
10～15 |
12～18 |
14～23 |
18～30 |
20～38 |
35～50 |
40～65 |
||
|
Inlet pipe diameter |
DN40/ DN50 |
DN100/ DN125 |
DN125/ DN150 |
DN125/ DN150 |
DN125/ DN150 |
DN150/ DN175 |
DN150/ DN200 |
DN200/ DN250 |
DN200/ DN300 |
||
|
velocity in pipe (m/s) |
13～16 |
||||||||||
|
Pressure (kpa) |
≤78 |
||||||||||
|
Body material |
Cast iron, cast steel, stainless |
||||||||||
|
Motor(kw) |
0.5 |
1.5 |
2.2 |
2.2 |
2.2 |
3.0 |
3.0 |
3.0 |
4.0 |
||
|
Weight (kg) |
650 |
770 |
960 |
1100 |
1100 |
1200 |
1300 |
1450 |
1600 |
||
Shanghai Clirik Machinery Co., LTD., the manufacturer of the air conveyor system,Is a professional engaged in all kinds of mining equipment research and development, manufacturing, sales of professional enterprises.
Established a complete production chain, products cover micro powder crusher, high pressure crusher, European version of coarse crusher, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. In particular, the independent research and development of micro powder crusher, not only boasts a good reputation in the domestic market, but also exported to Eastern Europe, the Middle East, Africa, South Asia, Southeast Asia, Oceania, America and other countries and regions, and always adhere to the exchange and collaboration with well-known scientific research institutions at home and abroad, so that our development ability is always in the forefront of the domestic.

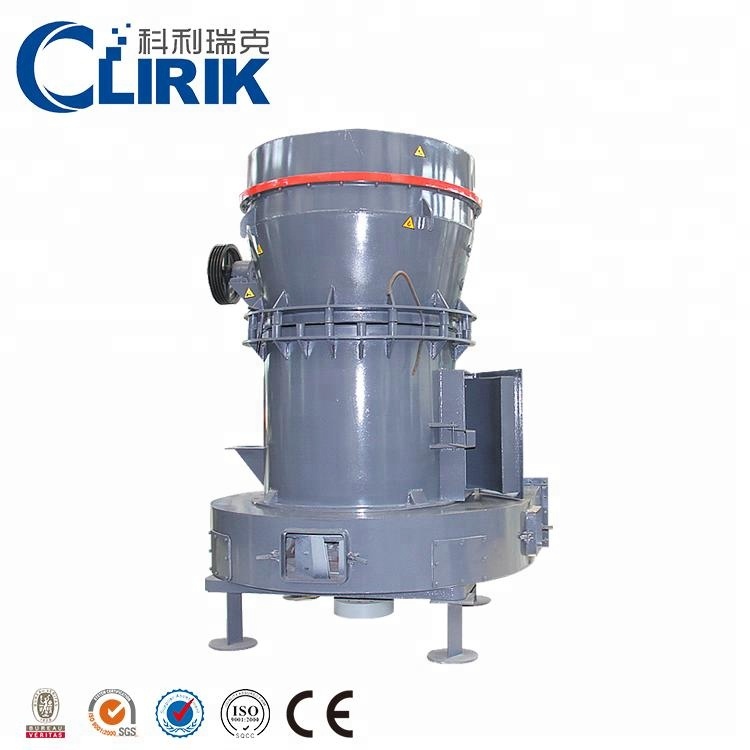

Micro Powder Grinding Mill
High Pressure Suspension Grinding Mill
Ultrafine Vertical Roller Mill
Inquiry Service of air conveying system, air transport system, powder conveying system
1. What is the raw material do you want to convey?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the conveying length and height?
If you want to be contacted, please click on us and we will send you detailed product data, quotations and solution drawings.
