Focus on the field of micro powder grinding !
Processing ability: 1-30t/h
Fineness: 50-325 mesh
Max feeding size: 20mm

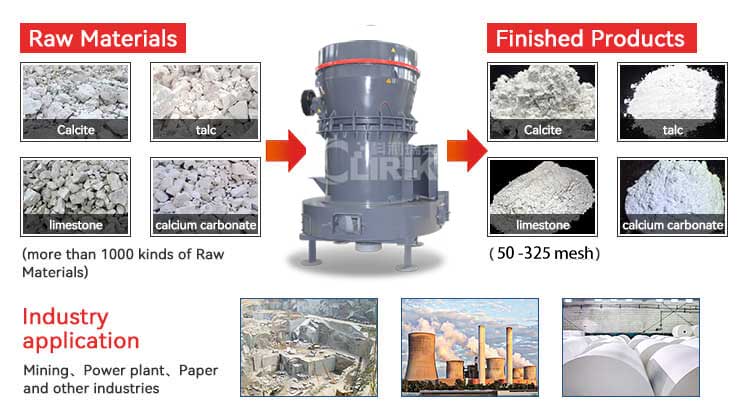

Range of application: Barite, feldspar, bauxite, mica, fluorite, barite, gypsum, talc, calcium carbonate, carbon black, kaolin, bentonite, dolomite...
Table of Contents

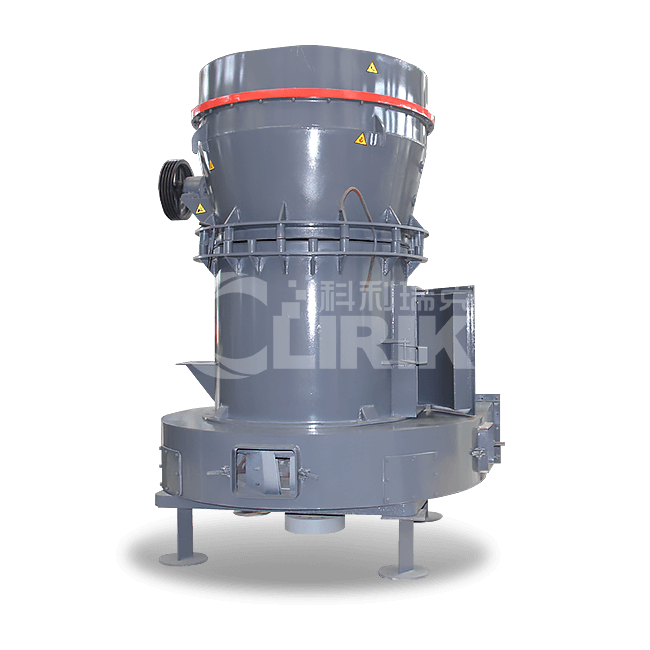

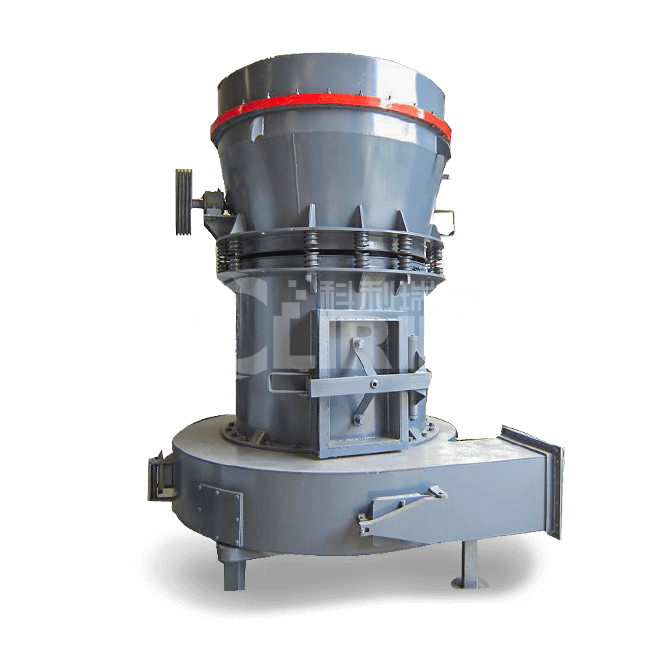

Barite powder Raymond mill also called barite powder Raymond roll mill,Widely used in metallurgy, building materials, chemical industry, mining and other fields of mineral materials grinding processing, suitable for processing mohs hardness below 6, humidity below 6% of all kinds of non-flammable and explosive minerals, Such as gypsum, talc, calcite, limestone, marble, potassium feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, iron oxide red, iron ore, etc.,

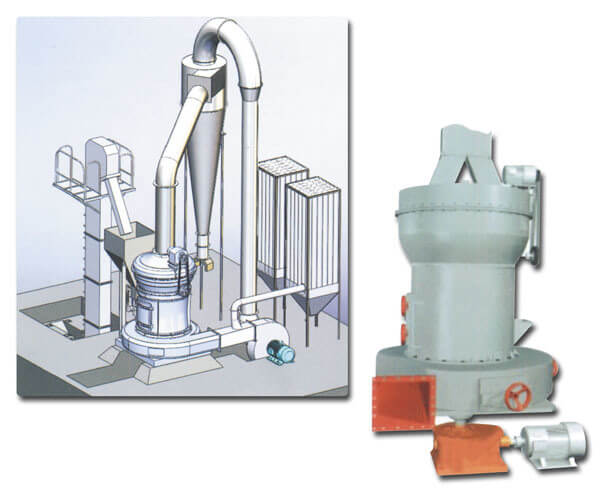

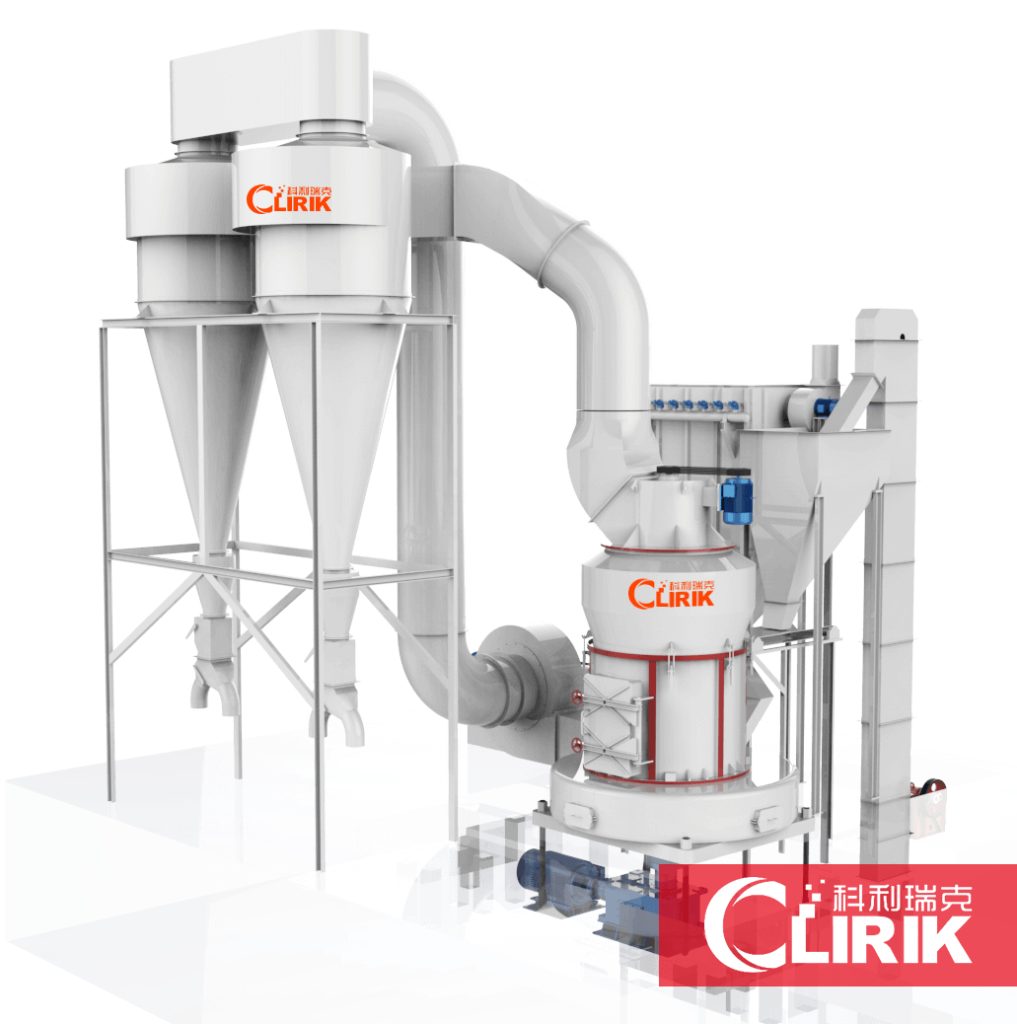

Barite powder raymon mill complete set of equipment comprises: host, analysis machine, blower, cyclone separator, pipeline device, motor and other components, auxiliary equipment has Raymon mill, dustbowl hoist, electromagnetic vibration feeder, electric control cabinet, users can select flexibly according to the site situation.
Barite powder Raymond mill has smashed the large block of raw material to the desired feed size, Conveying material to storage bin by Bucket Elevator, then the electromagnetic vibrating feeder evenly to host grinding cavity, into the grinding chamber of material between grinding roller and grinding ring grinding.
After grinding the powder fineness to meet the requirements through the airflow, into the big cyclone collector sorting collection pipeline. The finished product is then discharged through the discharge device.
The shovel system plays a crucial role in the working process of the host machine. It is located at the lower end of the grinding roller, the shovel knife and the grinding roller in the process of the same rotation of the material into the grinding roller between the roller ring, forming a cushion layer, the material layer by the grinding roller rotation of extrusion pressure will be crushed, so as to achieve the purpose of powder.
| Model | Roller | Ring | Feeding Size(mm) |
Finished Size(mm) |
Mill System Power(KW) |
Capacity (t/h) |
Overall Dimension (mm) |
|||
| Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter (mm) |
Height (mm) |
||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1.0-3.0 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12.0 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16.0 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8.0-20.0 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28.0 | 11550*9500*1050 |
1.The equipment is mature and stable.
Nearly 30 years of experience in grinding and designing different materials, mature transformation of 4 generations of mills.
2.High efficiency, large output.
Breaking through the bottleneck of traditional pendulum mill production capacity, enjoy the advantages of large single production capacity at home and abroad, single processing capacity up to 50T/H, under the same power, the output is 20% higher than the traditional R Raymond mill, 30% higher than the ball mill.
Roller linkage supercharging technology, smooth operation, large grinding pressure, significantly improved output.
Bevel gear integrated transmission, accurate transmission ratio, less transmission chain, small energy loss, significantly improved efficiency.
A variety of selection frequency conversion type powder separator and new isolation type cyclone powder collector, so that the particle size and precision of finished products can be adjusted and controllable, powder selection and powder collection efficiency greatly improved.
3.Reliable technology and low operating cost.
New technology, China’s national patent products, with technical innovation to create a three-dimensional structure, small footprint, strong system, from raw material rough processing, transportation, milling, to the final packaging, can become an independent production system barite powder Raymond mill.
Special grinding roller and grinding ring structure design, improve grinding efficiency, use cost reduction. The volute adopts the layout of no resistance and the same resistance, which greatly reduces the power and energy loss caused by the system energy consumption.
4.Multi-purpose, investment economy.
Without replacing any parts, one device is used for different materials and different finished particle size requirements.
Under the same output, the investment amount is only half of the ball mill, and the floor area is only one third of 4R Raymond mill. The infrastructure construction cost of the factory is low, the investment is economical, the capital recovery is quick, and the profit is quick.
5.Provide overall solutions.
Proprietary empirical equipment, before the project to provide users with the possibility of testing machine research, to provide users with crushing, drying, grinding, screening, packaging design, supply, construction, service and other aspects of the solution.
6.Energy conservation and environmental protection.
Small dust discharge, special dust collector configuration, dust removal effect of 99.99% or more, basically realize workshop dust-free operation.
Low operating noise, machine vibration is small, the noise is 20-30 decibels lower than the ball mill.
Clirik has the following advantages in the production of Barite Powder Raymond Mill:
1. Rich Professional Experience: Clirik has many years of experience in the research, development, and production of powder equipment, especially in the design and manufacturing of barite grinding equipment, accumulating extensive technical and process experience.
2. Strong Technological Innovation: Clirik continuously innovates and improves, with its Raymond Mill adopting the latest grinding technology. This technology offers high efficiency, energy savings, and stable operation, meeting the market demand for high-quality barite powder.
3. Strict Quality Control: Clirik implements strict quality control throughout the production process, from raw material procurement to finished product delivery. Each step undergoes rigorous testing to ensure the equipment’s high reliability and durability.
4. Customized Services: Clirik offers various models of Raymond Mills and can provide customized equipment solutions according to the specific needs of customers, ensuring optimal equipment performance that meets production requirements.
5. Comprehensive After-Sales Service: Clirik provides comprehensive after-sales services, including installation guidance, operation training, regular maintenance, and technical support, helping customers use the equipment better and extend its lifespan.
6. Global Sales Network: Clirik’s products are sold in many countries and regions worldwide, giving it a broad market influence and enabling it to provide high-quality equipment and services to international customers.
These advantages position Clirik as a leader in the production of Barite Powder Raymond Mills, offering customers efficient and reliable powder solutions.
Barite powder is a fine powder made from barite, a mineral composed of barium sulfate (BaSO₄). Barite is naturally occurring and is known for its high density, chemical inertness, and ability to absorb X-rays and gamma rays. These properties make barite powder valuable in various industrial applications.
Applications of Barite Powder
1.Oil and Gas Drilling: Barite powder is primarily used as a weighting agent in drilling fluids to prevent blowouts.
2. Paint Industry: Acts as a filler and extender in paints, providing color and brightness while improving the paint’s consistency.
3. Plastics: Used as a filler to enhance the density, stability, and chemical resistance of plastic products.
4. Rubber: Improves the strength and durability of rubber products.
This type of mill is crucial for industries that require finely ground barite, ensuring high-quality output and cost-efficient production.
