Focus on the field of micro powder grinding !
Processing ability: 1-30t/h
Fineness: 50-325 mesh
Max feeding size: 20mm
Range of application: Bauxite, mica, fluorite, barite, gypsum, talc, calcium carbonate, carbon black, kaolin, bentonite, dolomite...
Table of Contents
A Bauxite Powder Raymond Mill is a grinding machine designed for grinding bauxite into fine powder. Raymond mills are widely used in the mining, construction, chemical, and metallurgical industries. They are highly efficient and can produce fine bauxite powder, which is essential for various applications, including aluminum production and refractory materials.
1. Grinding Capacity: The bauxite powder Raymond mill can process a large amount of bauxite, turning it into a fine powder suitable for various industrial uses.
2. High Efficiency: Raymond mills are known for their high grinding efficiency, which translates to lower energy consumption and higher output.
Fine Powder Production: The mill can produce very fine bauxite powder, typically ranging from 80 to 325 mesh, depending on the specific requirements.
3. Adjustable Fineness: The fineness of the powder can be easily adjusted by altering the rotation speed and the gap between the grinding rollers and the grinding ring.
4. Durability: Raymond mills are built with high-quality materials, making them durable and able to withstand the wear and tear of grinding abrasive materials like bauxite.
5. Simple Operation: The bauxite powder Raymond mills are relatively easy to operate and maintain, which is beneficial for continuous production processes.

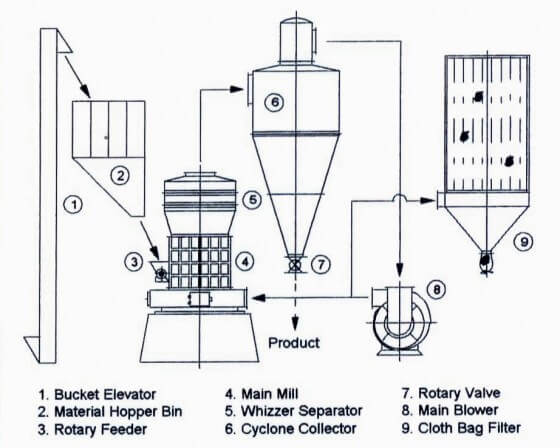

1. Crushing: Bauxite is initially crushed into smaller pieces.
2. Grinding: The crushed bauxite is fed into the grinding chamber of the Raymond mill. The grinding rollers roll over the material on the grinding ring, pulverizing it into fine powder.
3. Classification: The ground material is then blown by the blower into the classifier, where the fine particles are separated from the coarse ones.
4.. Collection: The fine bauxite powder is collected by the cyclone collector and discharged through the powder discharge port, while the coarse particles are sent back for further grinding.
1. Main Engine: Includes a grinding roller, grinding ring, and a central shaft.
2. Classifier: Ensures the separation of fine bauxite powder from coarse particles.
3. Blower: Circulates air to transport the fine powder to the cyclone collector.
4. Cyclone Collector: Collects the finely ground bauxite powder.
5. Plum Frame: Provides the support structure for the central shaft and grinding rollers.
6. Electric Control System: Manages the operation of the mill, including speed control and system monitoring.
1. Aluminum Production: Bauxite powder is a key raw material for producing aluminum through the Bayer process.
2. Refractory Materials: Bauxite powder is used in manufacturing refractory products that can withstand high temperatures.
3. Ceramics: It is used in the production of certain types of ceramics.
4. Chemical Industry: Bauxite powder is used as a raw material in various chemical processes.
Using a Bauxite Powder Raymond Mill ensures efficient, high-quality, and continuous production of fine bauxite powder, catering to the needs of various industrial applications.
Bauxite powder refers to finely ground bauxite ore that has been processed into a fine powder form. It is typically produced by crushing and grinding raw bauxite ore into a fine particle size to facilitate its use in various applications.
Production: Bauxite powder is produced through the process of grinding raw bauxite ore into a fine powder form. This process involves crushing the bauxite ore into smaller particles and then grinding it into a fine powder using grinding mills or pulverizers.
Particle Size: The particle size of bauxite powder can vary depending on the specific requirements of its intended use. It can range from coarse particles to very fine powders, typically with particle sizes ranging from a few micrometers to several tens of micrometers.
Composition: Bauxite powder retains the chemical composition of the original bauxite ore, primarily consisting of aluminum hydroxide minerals (such as gibbsite, boehmite, and diaspore) along with various impurities such as iron oxide, silica, and titania.
There are several types of ultrafine grinding mills that can be used for bauxite powder processing:
1. Ultrafine Grinding Mill: HGM series ultrafine powder grinding mills often incorporate advanced technology such as high-speed rotation, air classification, or other mechanisms to achieve ultrafine particle sizes.
2. Ball Mill: While not typically considered an ultrafine grinding mill, ball mills can achieve ultrafine particle sizes by using balls of very small size within the mill. They are commonly used in the mining industry for fine grinding of ores, including bauxite.
3. Vertical Roller Mill (CLUM): CLUM series vertical roller mill technology allows grinding of materials in a much narrower particle size distribution than traditional ball mills. This can be beneficial for achieving ultrafine particles in bauxite grinding.
4. Enhanced Roller Grinding Mill: CLRM series enhanced roller grinding mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 6 and humidity less than 6%. The particle size of the finished aluminum ore powder can be adjusted between 80-500 mesh (180-30 microns).
Ultrafine Grinding Mill
Enhanced Roller Grinding Mill
Vertical Roller Mill
When selecting an ultrafine grinding mill for bauxite powder processing, factors such as desired particle size, production capacity, energy consumption, and cost should be considered. It’s also important to ensure that the chosen mill is capable of handling the specific characteristics of bauxite ore, such as its hardness and abrasiveness. Additionally, proper maintenance and operational considerations should be taken into account to ensure efficient and reliable operation of the grinding mill.
