Focus on the field of micro powder grinding !
Processing ability: 1-45 t/h
Fineness: 325-3000 mesh
Max feeding size: 10-25mm
Range of application: Bauxite, fluorite, bamboo, gypsum, talc, dolomite, silica, graphite, mica, limestone, calcium carbonate, quartz, calcite, kaolin, bamboo, carbon black, bentonite, illite, vermiculite, sepiolite...
Table of Contents
Bauxite powder ultrafine grinding mill is a widely used ultra-fine grinding mill for various minerals powder processing, including bauxite.
Bauxite powder ultrafine grinding mill incorporate advanced technology such as high-speed rotation, air classification to achieve ultrafine particle sizes.

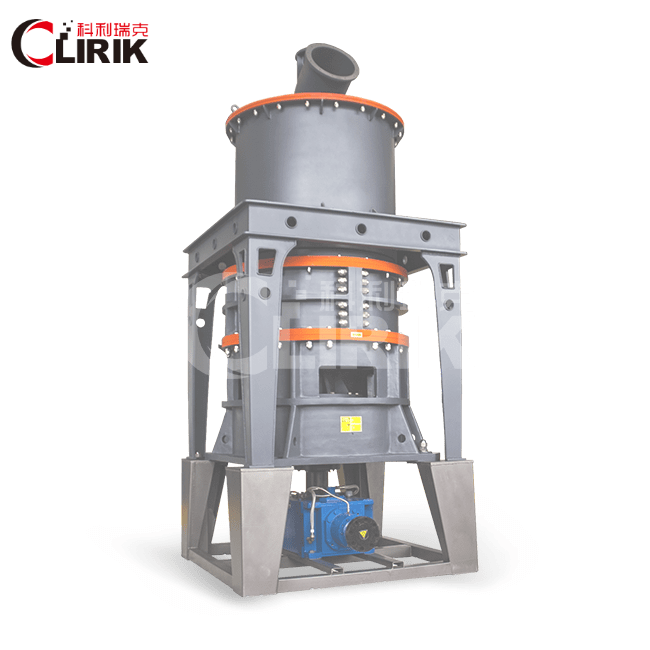

HGM ultrafine powder grinding mill
The HGM ultrafine powder grinding mill is a machine used for processing various non-flammable and non-explosive mineral materials with Mohs hardness less than 9.3 and humidity less than 6%. It is designed to grind materials into extremely fine powder, typically ranging from 325 to 2500 mesh.
HGM ultrafine powder grinding mill is widely used in industries such as mining, metallurgy, chemical engineering, and construction materials for grinding various minerals and materials into ultra-fine powders, making it suitable for applications requiring high precision and fineness.
Here are some key features and components of the Bauxite powder ultrafine grinding mill:
1. High Efficiency Classifier: The Bauxite powder ultrafine grinding mill is equipped with a high-efficiency classifier, which ensures the accuracy and fineness of the finished product.
2. Grinding Rollers and Rings: The grinding rollers and rings are made of special materials with high wear resistance, ensuring a long service life and minimal maintenance requirements.
Grinding Chamber: The grinding chamber is designed to minimize energy consumption while maximizing grinding efficiency. It is lined with wear-resistant materials to prolong its lifespan.
3. Main Motor: The Bauxite powder ultrafine grinding mill is powered by a high-performance motor that delivers the necessary power for efficient grinding operations.
4. Control System: The Bauxite powder ultrafine grinding mill often comes with an advanced control system, allowing operators to adjust various parameters such as grinding pressure, grinding speed, and classifier speed to optimize the milling process.
5. Dust Collector System: To maintain a clean working environment and prevent environmental pollution, the mill is typically equipped with a dust collector system to capture and remove fine particles generated during the grinding process.
6. Safety Features: Safety features such as overload protection and emergency stop mechanisms are often integrated into the design to ensure safe operation.
The Bauxite powder ultrafine grinding mill is widely used in industries such as mining, metallurgy, chemical engineering, and construction materials for grinding various minerals and materials into ultra-fine powders, making it suitable for applications requiring high precision and fineness.
The Bauxite powder ultrafine grinding mill utilizes a multi-stage grinding process to efficiently process bauxite powder. This is a general overview of the grinding process:
Bauxite is a naturally occurring, heterogeneous material composed primarily of aluminum hydroxide minerals, along with various impurities such as iron oxide, silica, and titania. It is the primary ore of aluminum and is typically found in tropical or subtropical regions.
When using an Bauxite powder ultrafine grinding mill to process bauxite powder, there are several important factors to consider to ensure efficient operation and high-quality output.
1. Feed Size: Ensure that the bauxite ore feed size is within the specified range recommended for the Bauxite powder ultrafine grinding mill. Excessively large particles may cause blockages or excessive wear on the grinding components.
2. Moisture Content: Monitor the moisture content of the bauxite ore. Excessive moisture can affect the grinding process and result in reduced throughput or poor powder quality. Ensure that the moisture content is within the acceptable range for the grinding process.
3. Grinding Parameters: Adjust the grinding parameters of the Bauxite powder ultrafine grinding mill according to the desired fineness and throughput requirements. This includes adjusting the grinding pressure, rotational speed, classifier settings, and airflow rate to optimize the grinding process.
4. Equipment Maintenance: Regularly inspect and maintain the Bauxite powder ultrafine grinding mill to ensure optimal performance. This includes lubrication of bearings, inspection of grinding components for wear, and cleaning of the grinding chamber and classifier.
5. Safety Precautions: Follow all safety guidelines and precautions when operating the Bauxite powder ultrafine grinding mill. This includes wearing appropriate personal protective equipment, such as safety goggles and gloves, and ensuring that the mill is properly grounded and installed according to manufacturer specifications.
6. Product Quality Control: Monitor the quality of the bauxite powder produced by the grinding mill. This may include periodic sampling and testing of the powder for particle size distribution, chemical composition, and other properties to ensure that it meets the desired specifications.
7. Environmental Considerations: Take into account environmental considerations, such as dust control and emissions management, when operating the Bauxite powder ultrafine grinding mill. Implement appropriate measures to minimize dust generation and emissions, such as installing dust collection systems and using dust suppression techniques.
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |
