Focus on the field of micro powder grinding !
Processing ability: 3- 45t/h
Fineness: 400-3000 mesh
Max feeding size: 10 mm
Range of application: Feldspar, Montmorillonite, Carbon black, Diatomite, Calcium Carbonate, Talc, Kaolin, Gypsum, Kaolin, Bentonite, Calcite, Limestone…
Table of Contents

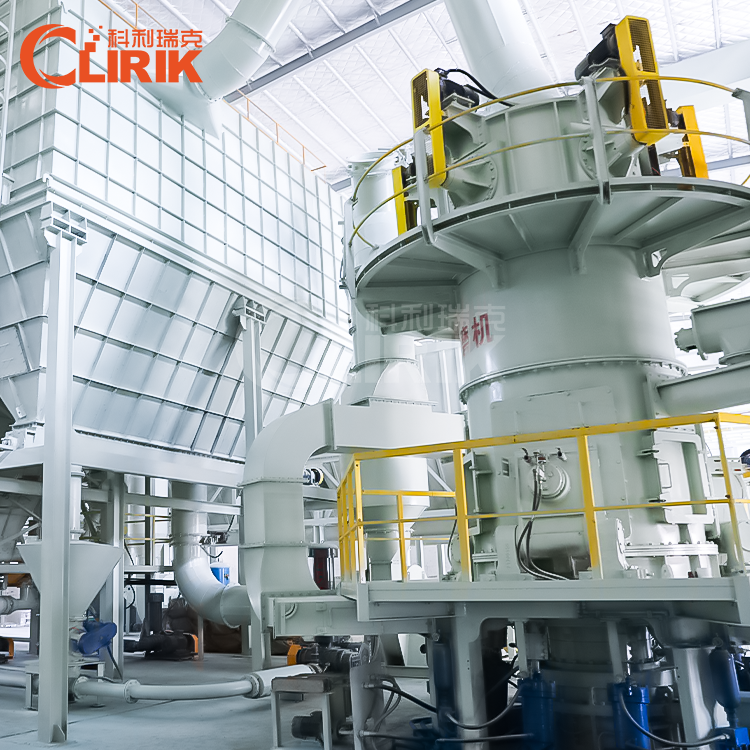

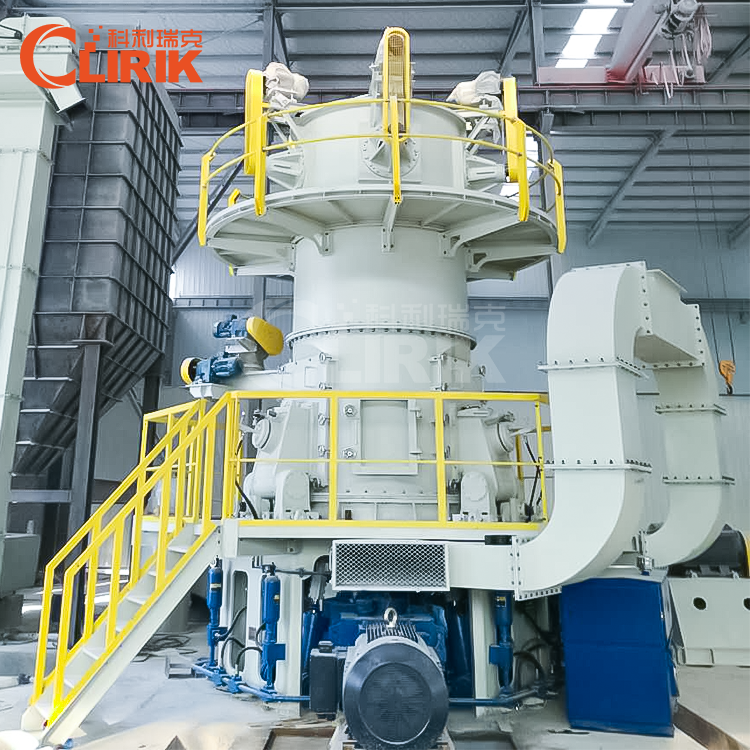

Feldspar powder vertical powder grinding mill is an efficient piece of equipment for producing fine and ultrafine feldspar powder. Here’s an overview of its key features and advantages:
Vertical Structure: The grinding mill is designed in a vertical structure, which occupies a small footprint, making it ideal for production lines with limited space.
High Grinding Efficiency: The vertical design allows for high grinding efficiency, with a reduction in energy consumption compared to traditional ball mills.
Adjustable Fineness: The fineness of the final product can be adjusted between 400 mesh (38μm) and 3000 mesh (5μm), catering to different application requirements.
Stable Performance: The machine offers stable and reliable performance, ensuring consistent output quality.
Environmental Protection:
Equipped with a dust collector and noise reduction devices, the vertical grinding mill minimizes environmental pollution.

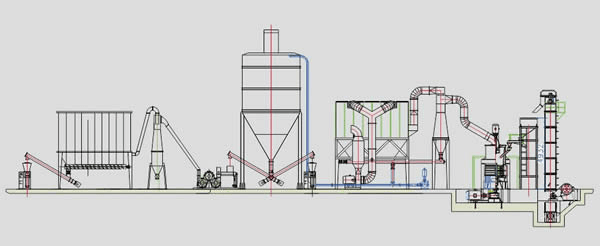

1. The feldspar is fed into the grinding chamber from the feed port.
Under the action of the grinding roller pressure, the material is crushed and ground.
2. Classification: The ground feldspar is carried by the air flow from the blower to the classifier above the mill.
3. Fine particles meet the required size and pass through, while coarse particles are returned to the grinding chamber for further processing.
Collection:
The fine feldspar powder is collected through the dust collector and transported to the storage silo or directly to the packaging unit.
Using a vertical powder grinding mill for feldspar ensures efficient production of high-quality, fine feldspar powder for various industrial uses.
1. Energy Saving: The vertical grinding mill consumes less power and has a lower operational cost due to its high efficiency.
2. High Output: It provides a high production capacity, making it suitable for large-scale feldspar powder production.
3. Easy Maintenance: The design simplifies maintenance and reduces downtime, thanks to accessible parts and user-friendly operation.
4. Uniform Particle Size Distribution: The advanced classification system ensures a uniform particle size distribution, improving the quality of the final feldspar powder.
5. Versatility: The Feldspar powder vertical powder grinding mill can process various types of feldspar, including potassium feldspar, albite, and others, making it versatile for different industrial applications.
| Main Configuration and Production | |||
| Model | CLUM1425 | CLUM1632 | CLUM1736 |
| Working Diameters（mm） | 1400 | 1600 | 1700 |
| Number of rollers（pieces） | 3 | 3 | 3 |
| Number of classifier（pieces） | 5 | 7 | 7 |
| Power of classifier（Kw） | 5X15 | 7X15 | 7X（15～18.5） |
| Main unit power （Kw） | 250 | 315 | 355 |
| Blower power（Kw） | 200 | 250 | 315 |
| Feed size （mm） | ＜10mm | ＜10mm | ＜10mm |
| Moisture of feeding material | ＜3% | ＜3% | ＜3% |
| Less than 2μm=34% output（t/h） |
11-14 | 13-17 | 15-19 |
| Less than 2μm=46% output（t/h） |
7-8 | 9-10 | 11-12 |
| Less than 2μm=60% output（t/h） |
3-4 | / | / |
| Material: based on calcite Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments |
|||
Feldspar powder produced by vertical grinding mills is widely used in:
Ceramics: As a flux to reduce the melting temperature of quartz and clays in the manufacturing of ceramics.
Glass Making: To enhance the hardness and durability of glass products.
Fillers and Extenders: In paint, plastic, rubber, and adhesive industries to improve product quality and performance.
Abrasives: For manufacturing high-quality abrasives due to its hardness and durability.
