Focus on the field of micro powder grinding !
Processing ability: 1-45 t/h
Fineness: 325-2500 mesh
Max feeding size: 10-25mm
Range of application: Calcium Carbonate,Gypsum, Limestone, Quartz ,Graphite, Calcite ,Feldspar ,Fluorite ,Mica ,Dolomite ,Pyrophyllite ,Marble...
Table of Contents

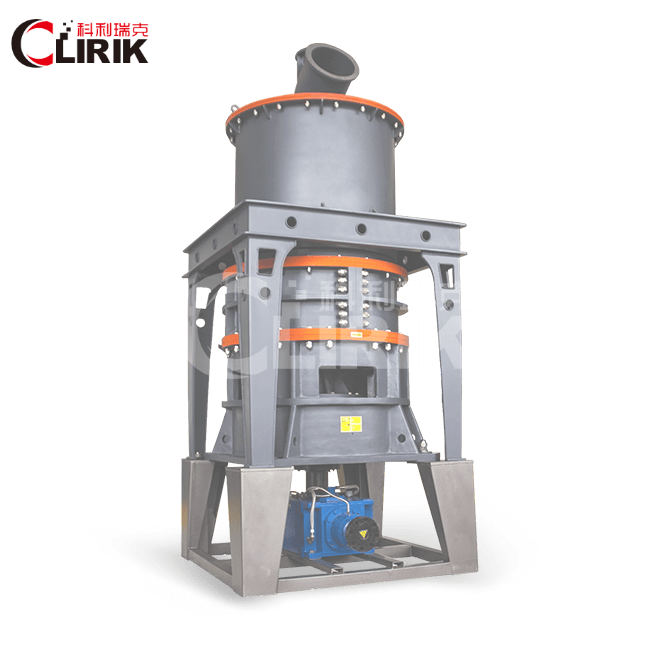

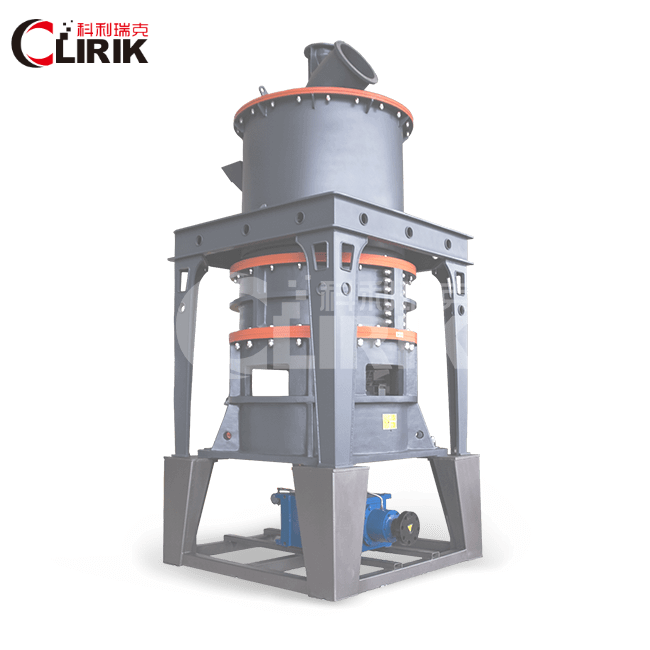

The HGM series ultrafine powder grinding mill was developed by CLIRIK powder technical experts and engineers on the basis of more than ten years of industrial mill research and development experience. This machine overcomes the defects of traditional industrial Raymond mill in the application range, output, fineness, energy consumption, service life and so on. It is an optimal substitute for traditional Raymond mill, ball mill and so on. Widely used in mining, metallurgy, electric power, chemical industry, steel, building materials, coal and other industries.
Application Of HGM
Series Ultrafine
Powder Grinding Mill

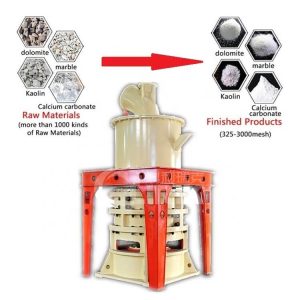

Clirik HGM Series ultrafine powder grinding mill is mainly suitable for medium and low hardness, Mohler hardness ≤6 non-flammable and explosive brittle materials, Such as calcite, chalk, limestone, dolomite, kaolin, talc, mica, bentonite, magnesite, illite and pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, pigment, clay, alunite, graphite, fluorite ore, rock phosphate, potassium, pumice, such as hundreds of kinds of materials, Fineness of discharge products can be adjusted in the range of 325-3000 mesh.
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |
| Unit KW | HGM80 | HGM90L | HGM100L/HGM100P | HGM125L | HGM168L |
| Main Unit | 75 | 2*45 | 132-150 | 185-200 | 315 |
| Classifier | 18.5 | 18.5-30 | 30-37 | 75 | 132 |
| Blower | 45 | 55 | 75 | 2*45-2*55 | 2*75-2*90 |
| Crusher | 18.5 | 18.5 | 18.5 | 45 | 75 |
| Bucket Elevator | 3 | 3 | 4 | 4 | 7.5 |
| BeltConveyor Feeder | 1.5 | 1.5 | 1.5 | 1.5 | 2 |
| Discharging Valve | 2*0.75 | 1.1 | 1.1 | 1.5 | 2*1.5 |
| Air compressor | 11 | 15 | 22 | 37 | 55 |

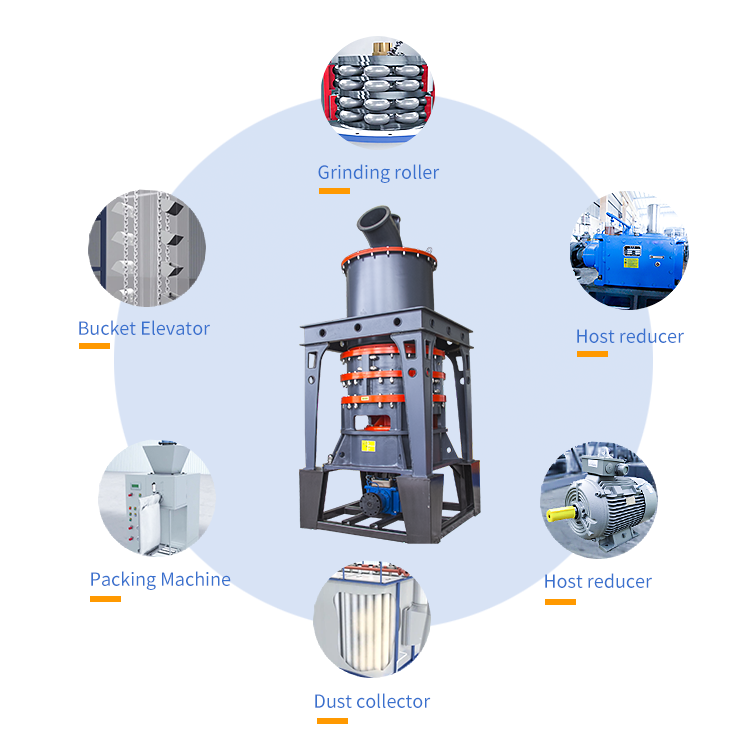

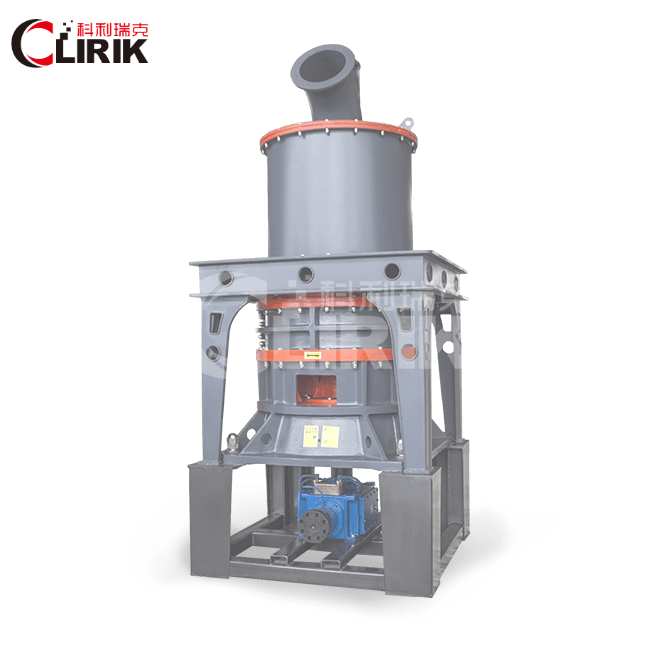

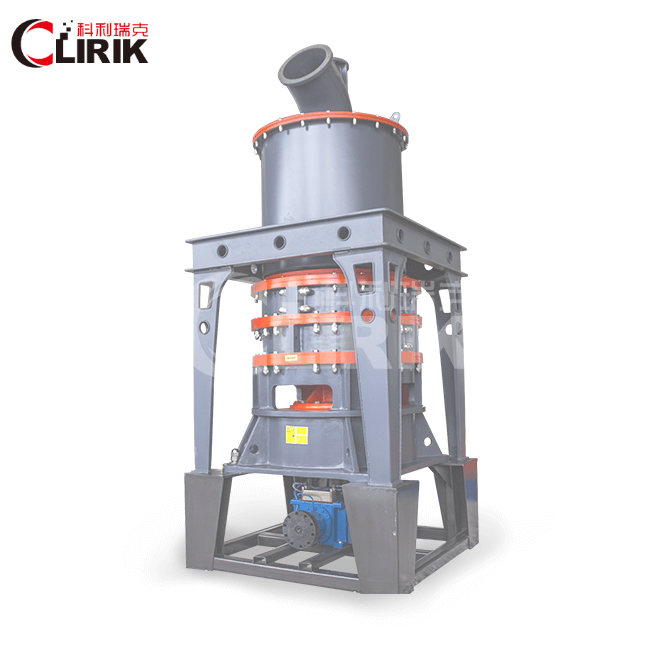

The HGM series ultrafine powder grinding mill is composed of mill host, powder separator, powder collector, Pulse Bag Filter, fan, muffler, sound insulation chamber, crusher,Bucket Elevator silo, feeder and other parts.
After the large material is smashed into small particles by the crusher, it is transmitted into the silo by the Bucket Elevator, and then through the feeder and the sloping feed tube, the material is evenly sent to the bulk plate on the upper part of the rotary table. When the HGM series ultrafine powder grinding mill is working, the mill roller rotates and rolls in the ring. Under the centrifugal action, the material disperses to the periphery and drops into the grinding chamber, and is stamped, rolled and ground by the grinding roller in the ring.
With the continuous suction of the draught fan, the material crushed by multiple layers is brought into the powder separator, and the high-speed rotating impeller is used for screening. The unqualified material falls back to regrinding, and the qualified material enters the cyclone powder collector with the airflow.
The dust particles with higher density fall and are discharged from the discharge valve at the bottom, which is the finished product. The fine dust with lower density enters the dust collector with the air flow and adheres to the surface of the filter bag. The pulse valve controls the high-pressure air flow to spray instantaneously from the inside of the filter bag, and the dust adhering to it falls due to the jitter of the filter bag.A conveyer at the bottom carries the materials collected at both locations for packaging.
1.Low cost of investment. At the same fineness, less investment, lower cost and shorter recovery cycle than air mill.
2.With the same fineness and power consumption, the output is more than 45% higher than that of air mill and agitation mill.
3.Wear parts low loss, all wear parts are made of high wear resistant materials, than ordinary grinding machine equipment wear parts long service life.
4.The operation of mill cavity is safe and reliable, and the sealing performance is better than that of an ordinary mill.
5.High fineness of finished products, fineness of products can reach 325-3000 mesh range.
6.Environmental protection and pollution. adopt high efficiency pulse type dust collector, the whole equipment has no dust pollution in the operation process, equipped with silencer and silencer room, reduce the noise, in accordance with the international environmental protection standards to produce, to the surrounding environment has played an environmental protection role.
Shanghai Clirik Machinery Co., Ltd. The main products of the company are HGM series ultrafine powder grinding mill, CLUM Series Ultrafine Vertical Roller Mill, YGM Series High Pressure Suspension Grinding Mill, SLG series micro-powder modification machine, etc. It is engaged in the research and development, production of ore micro powder equipment, ore micro powder technology research and application enterprises.
All the time, the company’s technical staff is committed to the improvement of grinding mill structure and process technology research. By discussing the design of adjusting the mechanical structure, further optimize the product performance.

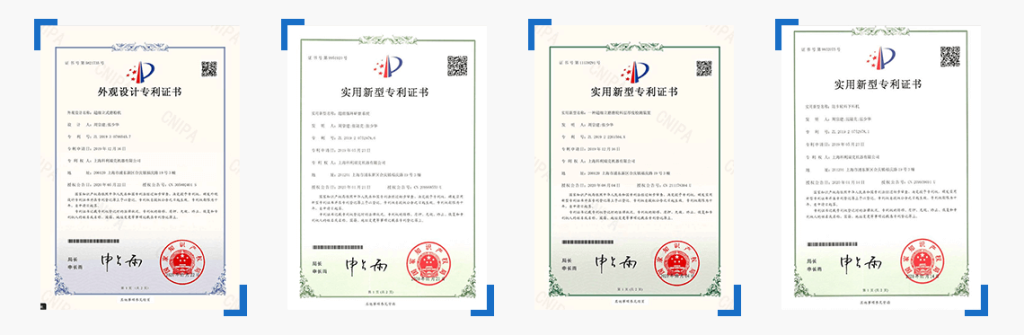

The technical team has overcome numerous difficulties in the research and development process, solved one problem after another, and successfully developed a safe and reliable, high yield and efficiency, simple operation, energy saving and environmental protection grinding mill equipment. And obtained a number of patent certificates.

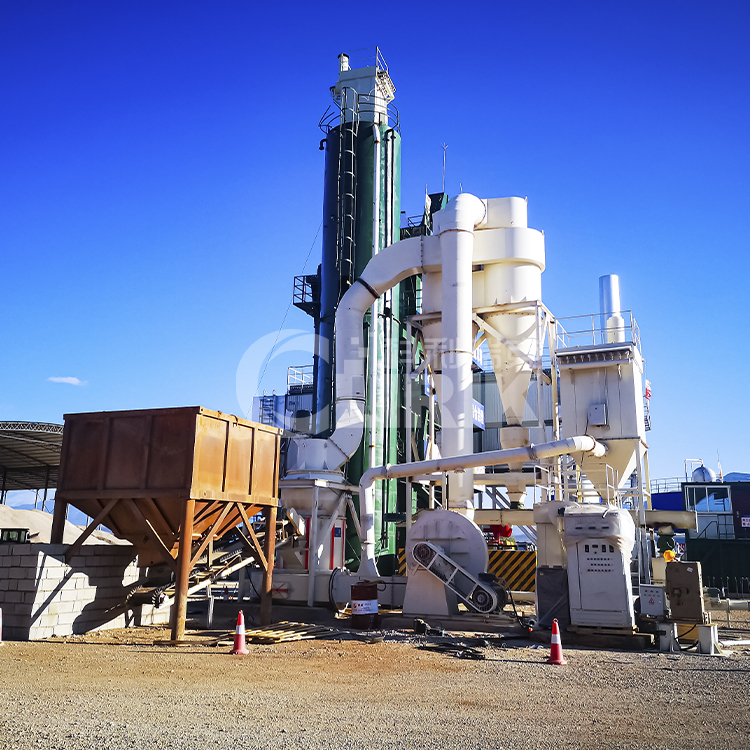

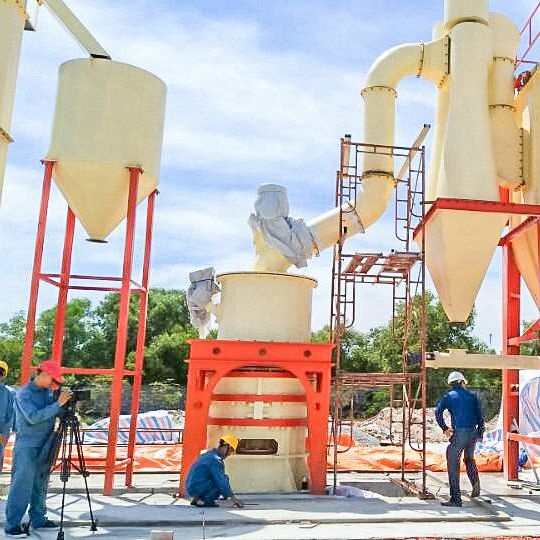

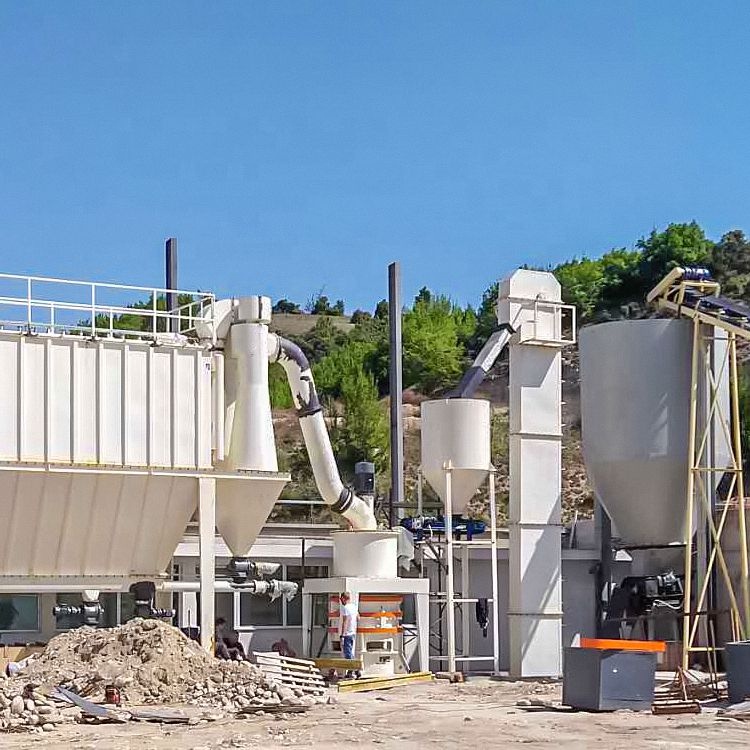

Some of our company’s projects are on display.
Because there 5 different kinds of ultrafine grinding mills, so our HGM series grinding mill unit has different prices, I need to ask you some details for sending you the more suitable quotation:
1. Which kind of material you are going to grinding?
(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )
2. What’s the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH < 1 TPH)
3. What’s the granularity of the final products you need?
(in milimeter, micron or mesh)
4. What’s the max input size of the material?
(In inch,centimeter or milimeter)
We will give you factory price with full specification,so pls leave us an inquiry to know more details about price, packaging shipping and discount.
