Focus on the field of micro powder grinding !
Processing ability: 0.8-6.5 t/h
Fineness: 200-2500 mesh
Max feeding size: ≤20 mm
Range of application: Calcium carbonate,bauxite, fluorite, bamboo, gypsum, talc, dolomite, silica, graphite, mica, limestone, quartz, calcite, kaolin, bamboo, carbon black, bentonite, illite, vermiculite, sepiolite...
Table of Contents
HGM90L Ultra Fine Grinding machine is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, etc, totally more than 100 kinds of materials. Product fineness can be controlled between 200~2500 mesh.
The HGM90L Ultrafine Grinding Machine is a type of industrial equipment designed for ultrafine powder processing. Here are some of its notable features:
1. High Efficiency: Equipped with a high-speed motor and precision-built components, the HGM90L offers high grinding efficiency, ensuring that materials are processed quickly and thoroughly.
2. Fine Powder Output: The machine is capable of producing ultra-fine powders with particle sizes ranging from 200 mesh to 2500 mesh (47-5 microns). This makes it suitable for applications requiring fine and consistent particle sizes.
3. Versatile Material Compatibility: It can process a wide variety of materials, including non-metallic minerals like calcite, limestone, dolomite, kaolin, bentonite, talc, mica, and more. It is also suitable for certain chemical and metallurgical materials.
4. Energy Saving: Designed to minimize energy consumption, the HGM90L operates efficiently, reducing overall operational costs.
5. Stable Performance: With robust construction and advanced design, the machine ensures stable operation and long service life. It features reliable and durable components that reduce downtime and maintenance needs.
6. Advanced Control System: Equipped with an intelligent control system, the HGM90L allows for easy operation and monitoring. Parameters can be adjusted to optimize the grinding process for different materials and desired output sizes.
7. Environmental Friendliness: The machine is designed with dust-collecting and noise-reduction systems, making it more environmentally friendly by minimizing pollution and ensuring a cleaner work environment.
8. Compact Design: Despite its powerful capabilities, the HGM90L has a compact design, allowing it to be installed in facilities with limited space.
9. Customizable Configuration: Depending on specific requirements, the machine can be customized with different configurations to meet various production needs.
10. High Safety Standards: Built with safety in mind, the HGM90L includes features like overload protection and emergency stop functions to ensure safe operation.
These features make the HGM90L Ultrafine Grinding Machine a versatile and efficient choice for industries requiring fine powder processing.
The HGM90L ultrafine grinding machine is designed for producing ultrafine powders, typically used in various industrial applications. Here’s an overview of its working principle:
Working Principle of HGM90L Ultrafine Grinding Machine
1. Crushing Stage: The bulk materials are crushed by a jaw crusher to the required size, which will be sent to the storage hopper by the elevator.
2. Feeding Stage: The material is uniformly and quantitatively fed into the grinding chamber of the main frame for grinding by the vibrating feeder.
3. Grinding Stage: A high-pressure blower sucks the air from the outside and blows the materials that are in the grinding chamber, being processed by the grinding roller and the grinding ring.
The roller and ring are designed to increase grinding efficiency and ensure the fine powder quality.
The ground material is brought to the classifier by the airflow for classification. The required fine powder is blown to the cyclone collector through the airflow.

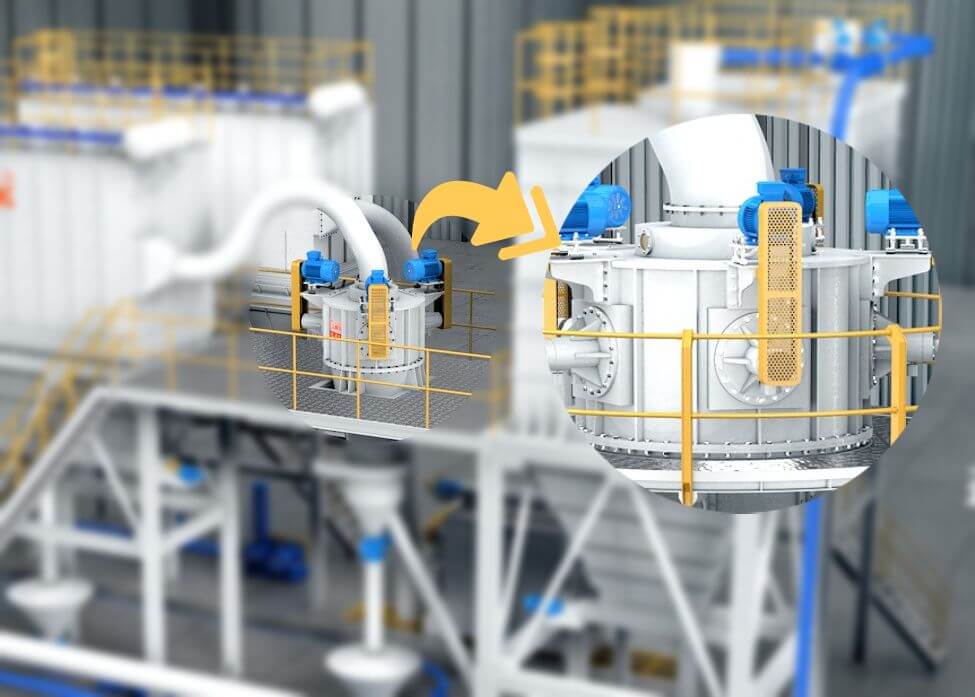

4. Classification Stage: The classifier separates the ultrafine powder from the coarser particles. The finer particles are collected by the cyclone collector. The coarser particles fall back to the grinding chamber for further grinding.
5. Collection Stage: The ultrafine powder collected by the cyclone collector is discharged through the powder outlet valve, and the purified air is discharged by the fan.
6. Control System: The entire operation is controlled through an integrated control system, ensuring consistent product quality and operational efficiency.
Key Components
1. Main Frame: Houses the grinding rollers and grinding ring.
2. Jaw Crusher: Used for initial material size reduction.
3. Vibrating Feeder: Ensures consistent feed into the grinding chamber.
4. High-Pressure Blower: Provides the necessary air flow for material movement and classification.
5. Classifier: Separates fine powder from coarser particles.

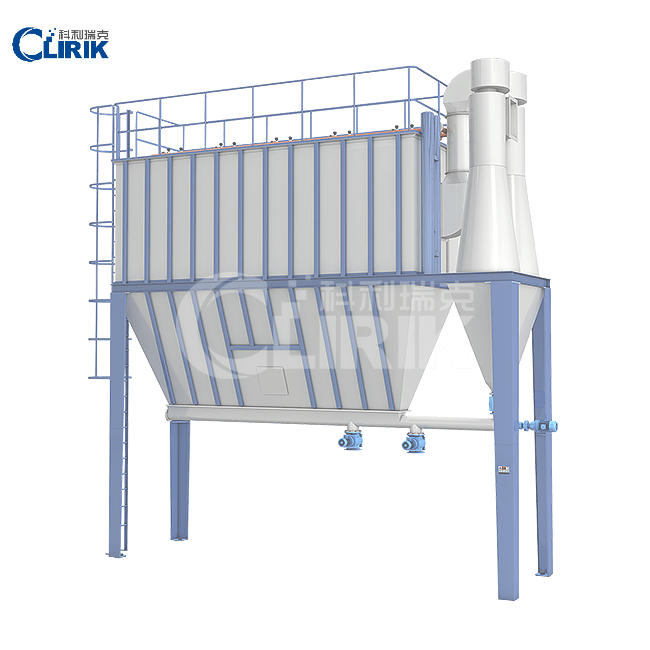

6. Cyclone Collector: Collects the fine powder.
7. Control System: Manages the entire grinding process for optimal performance.
Advantages
1. High Efficiency: The optimized design of the grinding roller and ring improves grinding efficiency.
Fine Powder Quality: The advanced classification system ensures high-quality ultrafine powder.
2. Stable Performance: Integrated control system and robust design ensure stable operation.
The HGM90L ultrafine grinding machine is well-suited for producing ultrafine powders in industries such as mining, chemical, and building materials.
| Model | HGM90L |
| Ring Diameter (mm) | 900 |
| Ring Number (layer) | 3-4 |
| Ring Number (piece) | 24-29 |
| Main Shaft Speed （r.p.m) | 200-220 |
| Input Size (mm) | ≤20 mm |
| Finished Size (um/mesh) | 74-5 / (200-500) |
| Capacity (t/h) | 0.8-6.5 |
| Overall Dimension (L*W*H, m) | 18.4*3.9*78 |
Here are the main advantages of Clirik as a manufacturer of the HGM90L ultrafine grinding machine:
Rich Experience and Expertise:
1. Technical Expertise: Clirik has many years of R&D and production experience in the grinding equipment field, accumulating rich technical knowledge and practical experience to provide customers with efficient and reliable equipment.
2. Strong R&D Capability: Clirik has a professional R&D team that continuously innovates and improves product design to ensure their equipment maintains a leading position in the market.
High-Quality Products:
1. Strict Quality Control: From raw material procurement to production, Clirik implements strict quality control to ensure the stability and reliability of each piece of equipment.
2. High Performance: The HGM90L ultrafine grinding machine features advanced design, high-quality materials, and components, offering high efficiency, high precision, and long service life.
Wide Range of Applications:
1. Various Materials: Clirik’s ultrafine grinding machine is suitable for grinding a variety of ores and non-ore materials with different hardness levels, such as calcium carbonate, calcite, marble, talc, gypsum, and more.
2. Multiple Industries: Their products are widely used in mining, building materials, chemicals, metallurgy, and other industries, meeting the diverse needs of customers.
Comprehensive After-Sales Service:
1. Professional Technical Support: Clirik provides detailed installation, commissioning, and operation training to ensure customers can quickly master the use of the equipment.
2. Quick Response: Clirik offers timely technical support and maintenance services for any issues encountered during use, ensuring uninterrupted production for customers.
Customized Solutions:
1. Customized According to Needs: Clirik can provide personalized solutions and equipment customization services based on the special requirements of customers, ensuring that the equipment perfectly fits the customer’s production process and site conditions.
Good Market Reputation:
1. Customer Recognition: With high-quality products and services, Clirik has won widespread customer praise and trust both domestically and internationally.
2. Brand Influence: As a well-known brand, Clirik has high visibility and influence in the industry.
Environmental Protection and Energy Saving:
1. Energy-Saving Design: The HGM90L ultrafine grinding machine focuses on energy-saving and consumption reduction, effectively lowering energy consumption and meeting modern enterprises’ environmental protection requirements.
2. Environmental Emissions: The equipment uses advanced dust removal and emission systems to reduce environmental pollution and comply with national environmental standards.
Through these advantages, Clirik has established an important position in the ultrafine grinding machine market, providing customers with efficient, reliable, and environmentally friendly grinding solutions.
