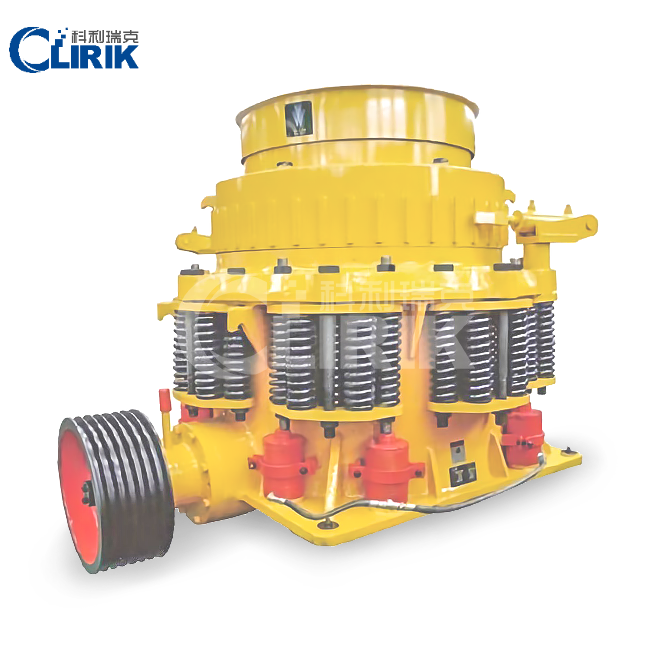

PY Series Cone Crusher
Processing ability: 5-750 t/h
Fineness: 3-100mm
Max feeding size: 300mm
Range of application: Limestone、 Soil、Coal、 Slag、Iron ore、Copper ore、 Manganese ore、 Refractory material、Glass...
- +8613917147829
- sales@clirik.com
Focus on the field of micro powder grinding !
Processing ability: 5-750 t/h
Fineness: 3-100mm
Max feeding size: 300mm
Range of application: Limestone、 Soil、Coal、 Slag、Iron ore、Copper ore、 Manganese ore、 Refractory material、Glass...
Base on the latest technology and decades of years’ producing experience, Clirik designed the PY series cone crusher. It has excellent crushing efficiency and good hydraulic control system.
PY series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy, and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone, and some others are easily crushed by cone crusher.
1. Large reduction ratio, high production efficiency.
2. Less consumption of wearing parts, low operating costs.
3. Pyramid broken, perfect of product shape.
4. Hydraulic protection and hydraulic pressure cavity clear high degree of automation to reduce downtime
| Model | Diameter of Bottom End of Conical Crushing Head (mm) | Max feeding size (mm) | Adjustment range of discharge opening | Capacity (t/h) | Power (kw) | Rev. of Eccentric shaft | Weight (Ton) | Overall dimension (mm) |
| PYB600 | 600 | 75 | 12-25 | 40 | 30 | 356 | 5 | 2234 × 1370 × 1675 |
| PYZ600 | 600 | 35 | 3-13 | 5-23 | 30 | 356 | 5.3 | 2234 × 137 × 1675 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 55 | 333 | 11.2 | 2692 × 164 × 2350 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 55 | 333 | 11.2 | 2692 × 164 × 2350 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 55 | 333 | 11.3 | 2692 × 164 × 2350 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 24.7 | 2790 × 1878 × 2844 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 110 | 300 | 25 | 2790 × 1878 × 2844 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 110 | 300 | 25.3 | 2790 × 1878 × 2844 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 245 | 50.3 | 3910 × 2894 × 3809 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 160 | 245 | 50.3 | 3910 × 2894 × 3809 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 160 | 245 | 50.2 | 3910 × 2894 × 3809 |
| PYB2200 | 2200 | 300 | 30-60 | 490-750 | 260-280 | 220 | 80 | 4622 × 3302 × 4470 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 260-280 | 220 | 80 | 4622 × 3302 × 4470 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 260-280 | 220 | 81.4 | 4622 × 3302 × 4470 |
