Focus on the field of micro powder grinding !
Processing ability: 1-20t/h
Fineness: 400-3000 mesh
Max feeding size: 10mm
Range of application: Talc, Limestone, Kaolin, Calcium Carbonate, Calcite, Dolomite,Pyrophyllite Mineral, Phosphorite Marble...
Table of Contents
Talc powder ultrafine vertical roller mill is a new type of vertical roller mill suitable for grinding non-metallic ultra-fine powder, which is developed by improving the existing vertical roller mill technology on the basis of absorbing the advantages of foreign ultra-fine vertical roller mill and analyzing the needs of domestic customers.
Independent research and development of talc powder ultrafine vertical roller mill used Adopt multi-head powder separator, Clirik classifier perfect solved the particle cutting point height rate of screening questions, compared with the traditional horizontal classifier, fully guaranteed the fineness of finished product can reach 20% ~ 70% (powder size<2um)(Detection machine: Malvern Micro laser particle size analyzer).
After years of material research and development, Clirik’s new wear-resistant alloy steel has been successfully applied to roll, ball mill bearing and other wear-resistant parts, which gives wear-resistant parts extremely long service life and prolonging the replacement cycle of wear-resistant parts.

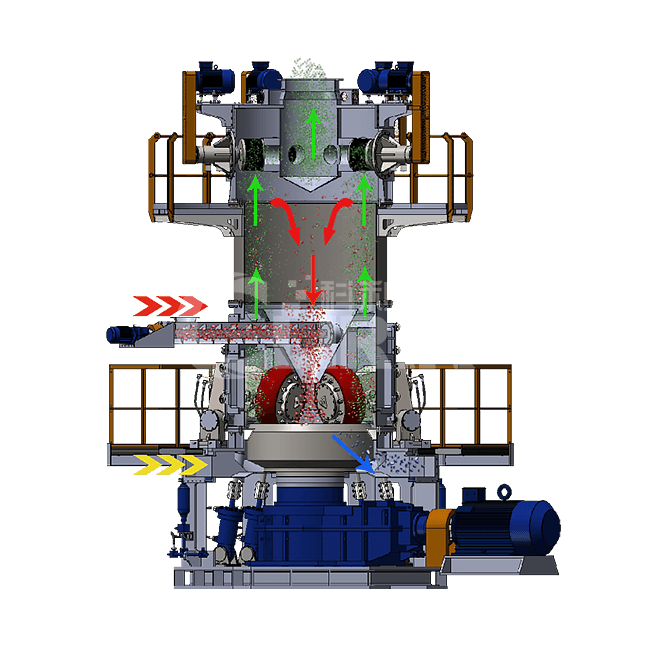

Talc powder ultrafine vertical roller mill grinding plate is rotated by the main motor via the reduction gear. Meanwhile, high pressure air enters the mill interior via inlet.
Materials then fall onto the center of the grinding plate in rotation by the screw conveyor feeder. Due to the centrifugal force, the materials evenly move from the center of the grinding plate towards its fringe. While passing across the track in the grinding plate, large blocks of materials are crushed and grinded directly by the grinding roller. The fine particles form the material bed, owing to squeezing, where the inter-particle crushing takes place until grind to the fine powder.
The fine powder continues to move towards the fringe of the grinding plate until they are taken away by strong air flow at the air ring. While the materials along with the air flow pass through the separator located above the grinding plate, the coarse particles return to the grinding plate for re-pulverization due to the action of the rotor blade, the fine particles along with the air flow leave the mill interior and are collected and discharged as finished powder product by the powder collector.
1. High quality powder size.
The fineness of the finished product is D97 5-45 microns. Narrow particle size distribution, can produce 2 micron content of 20%-70% products, greatly improving the added value of finished products and application areas.
2. Convenient maintenance.
The grinding wheel and roller plate lining are made of special alloy wear-resistant material, which makes the wearing parts have long service life and low maintenance cost.
3.High efficiency and energy saving
Special grinding structure, forming effective and stable material layer, equipment vibration is small, product pollution-free, good whiteness. Compared with the general mill, the power consumption is 30% less.
4.Environmental Friendly
The roller and grinding disc do not touch each other directly,there does not have the metal impact noise in low vibration .Compared with ball mill the running noise is 20-25db lower which would not hurt human’s health. Hermetic seal ensures that the system operates under negative pressure.The final powder is conveyed to the final product silo without dust leakage.The environment is clean, meeting the national environmental protection requirements.
| Main Configuration and Production | |||
| Model | CLUM1425 | CLUM1632 | CLUM1736 |
| Working Diameters（mm） | 1400 | 1600 | 1700 |
| Number of rollers（pieces） | 3 | 3 | 3 |
| Number of classifier（pieces） | 5 | 7 | 7 |
| Power of classifier（Kw） | 5X15 | 7X15 | 7X（15～18.5） |
| Main unit power （Kw） | 250 | 315 | 355 |
| Blower power（Kw） | 200 | 250 | 315 |
| Feed size （mm） | ＜10mm | ＜10mm | ＜10mm |
| Moisture of feeding material | ＜3% | ＜3% | ＜3% |
| Less than 2μm=34% output（t/h） |
11-14 | 13-17 | 15-19 |
| Less than 2μm=46% output（t/h） |
7-8 | 9-10 | 11-12 |
| Less than 2μm=60% output（t/h） |
3-4 | / | / |
| Material: based on calcite Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments |
|||
1.In the use of the talc powder ultrafine vertical roller mill, a special person should be responsible for the establishment of post responsibility system and operation specifications. The operator must be familiar with the performance, operation requirements and operation procedures of the machine. New staff must pass technical training, to meet the requirements before the operation.
2.Transmission parts of talc powder superfine vertical powder grinding mill parts lubrication work must be done, lubricant to add not too much or too little, winter and summer lubricant selection should be correct, and the parts of the cleaning is important to note that pollution lubricant impurities affect the lubrication effect, best clean up periodically according to the working strength add new lubricant.
3.Always check the backblowing air pressure of the filter bag filter, so as to avoid blockage of the filter bag. The decline of the fan current will affect the output of the equipment. Check the dust collector regularly. If the filter bag is damaged, it should be replaced in time to avoid dust leakage and pollution; the water discharge switch at the lower part of the oil-water separator should be discharged 2-4 times every 8 hours.
4.Always check the parts and components, and tighten them in time when they are loose to avoid accidents; if the wearing parts such as roller, ring, plate and shaft pin are found to be seriously worn, the wearing parts should be replaced at the same time to ensure normal production; the muffler should be cleaned regularly to avoid excessive resistance and affecting the system air volume.
5.Attention should be paid to avoiding outdoor production in the external working environment of talc powder ultrafine vertical roller mill. Exposure to sun and rain will cause different degrees of damage to the mill. If there is water in the body, the effect will be worse.
6.The working time of the grinding mill should be planned in detail. Machines and people alike should try to avoid overwork. Overwork operation is not only low production efficiency, but also great damage to the machine.
Clirik with a full experienced and strong service sense engineers team, Clirik is devoted to building up a complete customer service system with high efficiency to offer high value-added technical support and professional after-sales service for customers.
A.Pre-sale:
B. During sale:
C. After-sale:
Because there are different kinds of talc powder ultrafine vertical roller mill, our talc powder vertical grinding mill has different prices, I need to ask you for some details for sending you the more suitable quotation:
1. Which kind of material are you going to grind?
( Dolomite; calcite; quartz; talc; basalt; barite; feldspar; gravel; bentonite; gypsum; Bamboo;Granite; coal; slag; limestone; pebble; others)
2. What’s the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TH > 1 TPH < 1 TPH)
3. What’s the granularity of the final products you need?
( in milimeter, micron or mesh)
4. What’s the max input size of the material?
( In inch, centimeter or millimeter)
We will give you factory prices with full specification, so please leave us an inquiry to know more details about price and packaging. shipping and discount.
